QUESTION 1 [25 Marks]

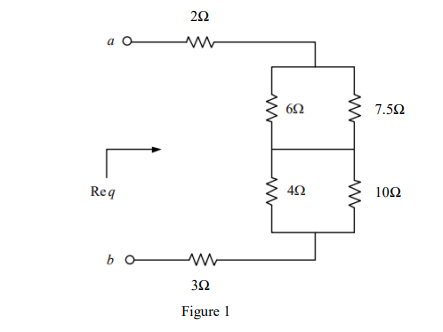

(a) Determine the equivalent resistance for circuits in Figure 1 below.

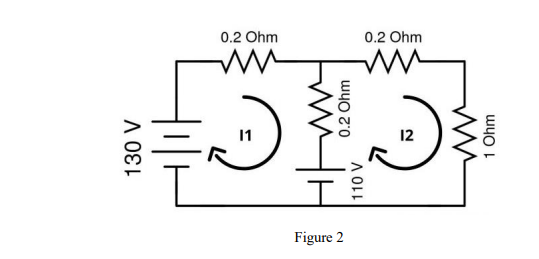

(b) Determine the following parameters for the circuit as shown in Figure 2 below using Kirchhoff’s Voltage Law (KVL).
i. currents, I1 and I2 [10 marks]
ii. voltage across resistor 1Ω

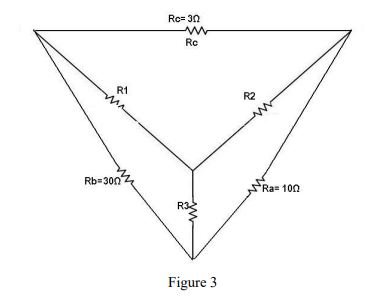

(c) Covert the delta circuit to wye connection by determining the values of R1, R2 and R3 as shown in Figure 3 below
